Full Body Red Light Therapy SL5000 Red Light Panel
📦 Order now, receive it between
Choose options
Experience extensive full-body light coverage with the SL5000 Red Light Panel, the largest model in the SL Series. Designed for home wellness rooms, fitness facilities, recovery centers, spas, clinics, and professional environments, the SL5000 features 960 premium LEDs, high irradiance output, and a durable iron frame for reliable long-term use.
The SL5000 provides flexible control over red and near-infrared (NIR) light output, allowing users to independently adjust intensity, session duration, dimming, and pulse settings. Available in both 5-waveband and 7-waveband configurations, this extra-large panel is designed for broad-area light exposure while maintaining a slim profile suitable for dedicated or wall-mounted installations.
Extra-Large Full Body Coverage
- 960 Premium LEDs: A large LED array provides extensive coverage for full-body light therapy sessions.
- High Irradiance Output: Delivers up to 181 mW/cm² at 6 inches according to the manufacturer's measurements.
- 30° Lens Beam Angle: Directs light toward the intended treatment area.
- Slim Profile: Measures only 2.4 inches thick for convenient installation and positioning.
5-Waveband & 7-Waveband Options
The SL5000 is available with two LED wavelength configurations, giving users flexibility when selecting the light spectrum that best fits their wellness routine.
5-Waveband Configuration
- 630nm: 96 LEDs
- 660nm: 384 LEDs
- 810nm: 48 LEDs
- 830nm: 48 LEDs
- 850nm: 384 LEDs
7-Waveband Configuration
- 480nm: 24 LEDs
- 630nm: 96 LEDs
- 660nm: 312 LEDs
- 810nm: 48 LEDs
- 830nm: 48 LEDs
- 850nm: 384 LEDs
- 940nm: 48 LEDs
Independent Red & Near-Infrared Controls
- Independent Red & NIR Adjustment: Control red and near-infrared output separately for a more customizable session.
- Adjustable Timer: Select a 1-30 minute session or use the adjustable 0-30 minute setting.
- Adjustable Dimming: Set output to 100% or adjust intensity from 0-100%.
- Adjustable Pulse Mode: Choose 0 Hz or customize pulse frequency up to 10,000 Hz.
- Touch Key Controls: Convenient integrated controls make operation straightforward.
- Optional HD Touchscreen: An Intelligent HD touchscreen option provides an enhanced control interface.
- Wireless Synchronization: Compatible panels can be synchronized for multi-panel installations.

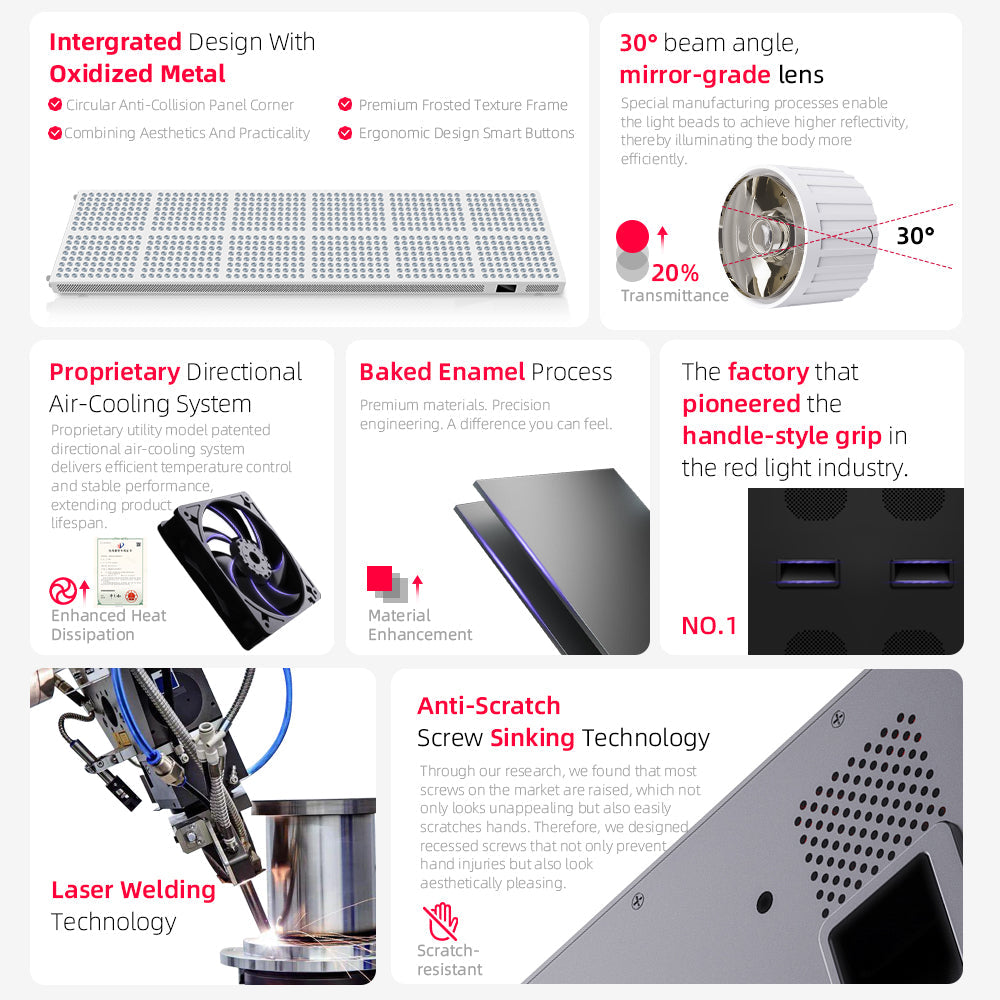

Durable Construction & Efficient Cooling
- Durable Iron Frame: Provides a sturdy structure designed for regular use.
- Patented Heat Dissipation System: Helps manage operating temperatures during sessions.
- Modular Internal Construction: Designed to simplify maintenance and servicing.
- Gold Wire Connections & Copper Holders: Premium LED construction supports long-term component durability.
- Flicker-Free Operation: Designed for consistent light output without visible flickering.
- Up to 100,000-Hour LED Lifespan: Long-lasting LED components are designed for extended use.
Technical Specifications
| Model | SL5000 |
| LED Quantity | 960 LEDs |
| Available Waveband Options | 5-Waveband or 7-Waveband |
| 5-Waveband | 630nm, 660nm, 810nm, 830nm, 850nm |
| 7-Waveband | 480nm, 630nm, 660nm, 810nm, 830nm, 850nm, 940nm |
| Frame Material | Iron |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Rated Power | 4800W |
| Power Consumption | 1310W |
| Irradiance at 6 Inches | 181 mW/cm² |
| Irradiance at 12 Inches | 152 mW/cm² |
| Irradiance at 18 Inches | 141 mW/cm² |
| Irradiance at 24 Inches | 124 mW/cm² |
| Lens Beam Angle | 30° |
| EMF | 0 μT at 3 inches |
| Operation | Flicker-Free |
| Expected LED Lifespan | Up to 100,000 hours |
| Timer | 1-30 minutes or adjustable 0-30 minutes |
| Dimmer | 100% or adjustable 0-100% |
| Pulse Mode | 0 Hz or adjustable 0-10,000 Hz |
| Control Options | Touch key controls or optional Intelligent HD touchscreen with wireless multi-panel synchronization |
| Dimensions | 1800 × 473 × 60 mm / 70.9 × 18.6 × 2.4 inches |
| Weight | 27.7 kg / 61 lbs |
| Warranty | 3-Year Limited Warranty |
What's Included
- 1 × SL5000 Red Light Panel
- 1 × Integrated Control System
- 1 × User Documentation
Ideal Applications
The SL5000 is designed for users seeking extensive-area red and near-infrared light exposure in home wellness rooms, fitness facilities, spas, recovery centers, clinics, and other professional environments. Its extra-large format provides comprehensive full-body coverage while maintaining a slim profile for dedicated installation.
Important Product Information
This product emits red and near-infrared light and is intended for light therapy applications only. It is not intended to diagnose, treat, cure, or prevent any disease. Always operate the panel according to the manufacturer's instructions. Product specifications and available configurations are subject to change without prior notice.
